CeBit-Vorschau: Neue Asus Mainboard-Serie mit vielen Features
Anschlüsse:

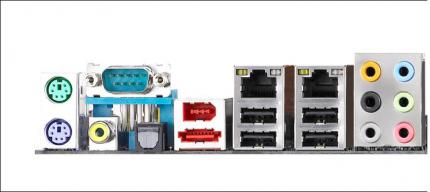

M2N32-SLI Premium Vista Edition
- Dual-Gigabit-LAN-Controller
- Zwei Firewire-Ports
- Acht USB-2.0-Ports
Audio: ADI AD1988 8-Kanal HD-Audio-Codec
OC-Features:
Intelligent-Overclocking-Tools, Precision-Tweaker, SFS (Stepless Frequency Selection), Overclocking Protection
----- snip -----
M2N32-SLI und M2N-Plus
SLI System-Bus: 2000 / 1600 MT/s
Hauptspeicher: Max. acht GByte, verteilt auf 4x DDR2-DIMM mit 800/667 und 533 MHz getaktet. ECC und Non-ECC-Speicher
Karten-Slots:
M2N32-SLI:
- Zwei PCI-2.2-Slots
- Zwei PCI-Express-x16-Slots für SLI-Technologie (x16)
- Einen PCI-Express-x4-Slot
- Einen PCI-Express-x1-Slot

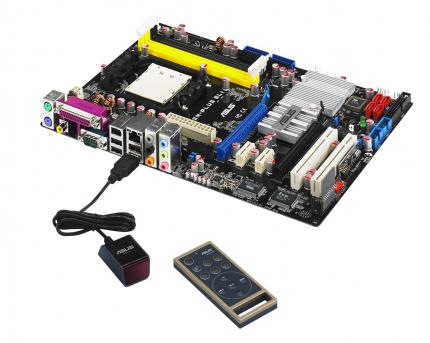

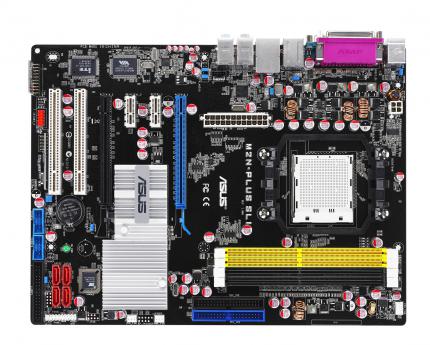

M2N-Plus SLI:
- Zwei PCI-2.2-Slots
- Zwei PCI-Express-x16-Slots für SLI-Technologie (x8)
- Zwei PCI-Express-x1-Slots
Massenspeicher-Anschlüsse:
M2N-PLUS SLI
Southbridge:
- RAID-Controller unterstützt: 0, 1, 0+1, 5
M2N32-SLI:
- Sechs SATA-Ports
- Einen UltraDMA-Controller (133/100/66) für zwei PATA-Geräte
M2N-Plus-SLI:
- Vier SATA-Ports
- Zwei UltraDMA-Controller (133/100/66) für vier PATA-Geräte
Silicon Image 3132 SATA-Controller:
- Einen internen SATA-Port mit RAID 0 und 1 Unterstützung
- einen externen SATA-Port mit RAID 0 und 1 Unterstützung
Anschlüsse:
- Dual-Gigabit-LAN-Controller mit Nvidia DualNet-Technology (nur M2N32-SLI)
- Nvidia Nforce 500 SLI MCP built-in Gigabit (nur M2N-Plus-SLI)
- Zwei Firewire
- Acht USB-2.0-Port
Audio:
M2N-PLUS SLI
- ADI AD1988 8-Kanal HD-Audio-Codec (nur M2N32-SLI)
- C-Media Superior-Quality-Audio 7.1-Kanal-Codec (nur M2N-Plus-SLI)
OC-Features:
Intelligent-Overclocking-Tools, Precision-Tweaker, SFS (Stepless Frequency Selection), Overclocking Protection
